Mist Cannon Mist Gun

Cloud Tech Mist Cannon Dust Suppression System brings state-of-the-art technology to the difficult and costly task of controlling dust at manufacturing, industrial and agricultural sites. It produces a ultra-fine water fog that effectively attracts and holds dust particles so that they can be more readily removed from the work place and other environmentally sensitive areas.

How Cold Fog Dust Suppression System:

Cloud Tech Cold fog Dust Suppression System uses high pressure water fogging which creates a ultra-fine fog consisting of very fine water droplets (<10 micron size). (Defined as Dry Fog) in diameter. These tiny water droplets absorb even the smallest dust particles in the air, yet fall to the ground without wetness. Particularly suited for dusty environments.

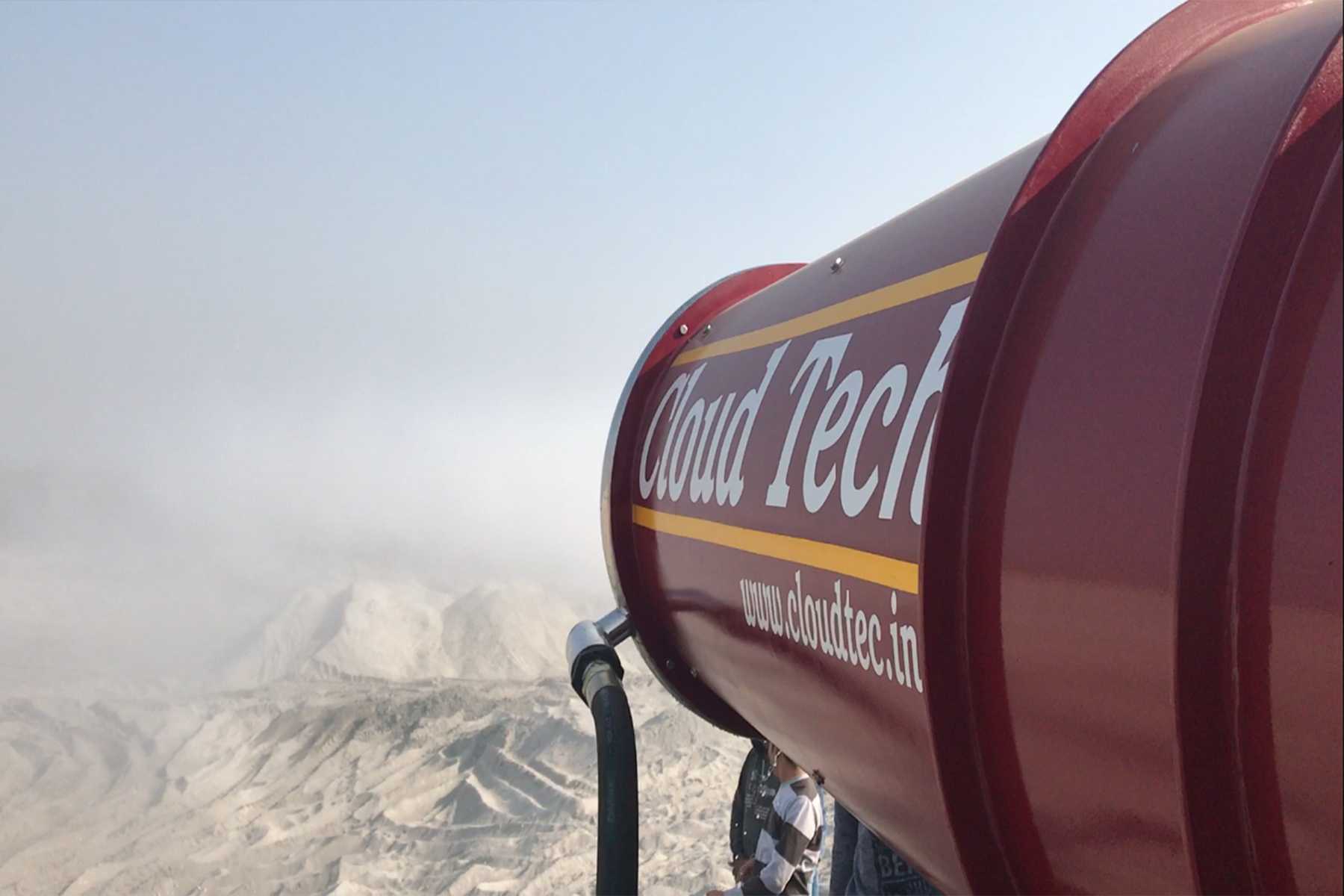

Mist Cannon

Benefits

Low Initial Cost. Low Operating & Maintenance Cost. Operating at 1500 PSI, Cloud Tech Dust Suppression System requires no costly air compressors, making the initial outlay lower than any other type of dust suppression system. Cloud Tech Dust Suppression System can be installed for as little as 60% of the conventional bag filter type system. It can operate on as little as five percent of the total energy of a conventional system.

  • Our Mist Cannon help you meet environmental standards: Custom installations can reduce dust to required levels, for environmental and worker safety standards.
  • Smallest droplets give maximum dust control.
  • Inexpensive to operate: Low water and electricity consumption save running costs.
  • Low Maintenance: With no moving parts in the fogger, you will have years of reliable low-maintenance operation.
  • Reduces PM-10 levels in open plant areas by 50% or more - Will remove much of the finer dust particles - Safer than bag houses. No fire hazard - Can be used in high humidity conditions - Cools workers on jobs where hot-dry air is a part of work environment - Traps dust particles without over-wetting material.

Each Cloud Tech Mist Gun is custom designed to catch and suppress dust in the most effective way at any given site. The atomization nozzle and delivery system create a 10- micron fog droplet without using a air compressor, resulting in exceptionally cost effective PM- 10 suppression. Lightweight, compact, minimum of interference with plant and worker activity and easily installed.

Cloud Tech Mist Gun is highly effective in PM-10 suppression and can create a safer, more comfortable environment in a wide range of situations.

Application:
Coal Wagon Tippler
Material Handling Conveyors
Crusher and screens
Hopper
Ash Silos
Indoors area and sheds
Industries:
Power Plants
Cement Plants
Stone Crushers
Steel Plants
Mines
Production facilities

Cloud Tech "DRY FOG" DUST Suppression System

The "Dry Fog" Dust Control System works on the principle of agglomeration. The Dust particles released from a Material Handling/Processing Plant which become air borne, are made to pass through a blanket of extremely fine Fog. The dust particles and the Micronic size Fog droplets collide and adhere to each other, thus increasing their mass. After a series of such collisions, the mass becomes heavy enough to cause settlement of the agglomerates on the larger mass of material being handled. The "Dry Fog" System is capable of controlling all types of breathable and fugitive dust ranging from 1 to 800 microns.

Basic research has shown that if water droplets of approximately the same size as the dust particles are produced, the probability of collision between the two is extremely high. We have developed a specially designed dual Fluid nozzle which shears water into droplets of the desired size by resonance effect. The fine droplets evaporate before wetting anything but the air-borne dust. The water addition in the system is 0.1%(Max.) by weight of the material being handled.

Application Field:-All conveyors transfer station duly covered by Skirt/Hood on the conveyor for handling of material including wagon tippler and various transfer point duly covered from wind blowing pressure.

Cloud tech Plain water DUST SUPPRESSION SYSTEM

The main principle of the System is to wet the material by a fine spray of Water so that the dust particles are made to impinge and adhere to the water droplets. The material is thus kept damp/wet, immobilizing the dust particles preventing them from becoming air borne.

The system offered by us has the following salient features as compared to other comparable systems:

Application Field:-All hopper, wagon tippler, Truck tippler, etc and open area including conveyor transfer point under open enclosure.

  • OPERATING PRESSURE The System offered by us operates at a pressure of 4.5-5.0 Bar as compared to other available Systems operating at 3.5-4.0 Bar. The high pressure System ensures superfine spray, enabling a greater penetration and effective particle encapsulation and consequently better Dust Suppression.
  • NOZZLES The used Stainless Steel Nozzles have a unique spirally milled core, which produces a high velocity spinning action that gives a solid cone distribution of fine atomized spray.
  • FILTRATION SYSTEM For trouble free operation of the system and to ensure fine and consistent quality of spray, the system offered by us has two stages of filtration.
  • Stage–I - A Duplex Strainer is provided in the inlet service water line at the Pump House to remove suspended particles exceeding 100 microns.
  • Stage–II- - Each Flow Activation Station (Solenoid Box) is provided with a Y-Strainer to filter any particles that may be deposited in the pipeline between the Pump House and the Flow Activation Stations.
